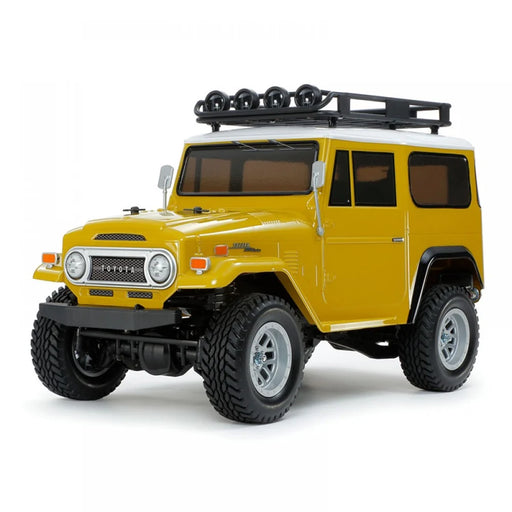

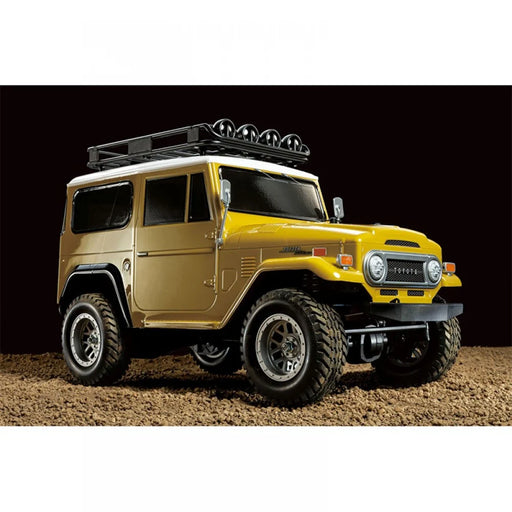

1/10 Tamiya RC Toyota LC 40 (CC-02 Chassis)

PRODUCT DESCRIPTION:

The Toyota Land Cruiser 40 has been a staple subject for Tamiya since 2008. It first appeared on the CR-01 crawler chassis then later the simpler CC-01 cross country chassis. Now, the classic Land Cruiser makes its way on to Tamiya’s newest cross-country platform, CC-02 with a few detail tweaks for the scale enthusiast!

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with 12-spoke wheels and semi-pneumatic rubber tires.

Feature:

• The CC-02 chassis is designed for a wide range of off-road driving expeditions and has a ladder frame which was inspired by full-size vehicles.
• NEW: A roof rack with light pods is realistically depicted with separately molded parts.
• NEW: Silver color 12-spoke wheels are paired with block pattern tires. (Wide wheels are included to recreate the customized look of this version.)
• NEW: New stickers feature integrated tinted window and window frame sections to allow ease of applying stickers and eliminate the need for painting the window tint.

Specification:

• Length: 390mm
• Width: 198mm
• Height: 237mm
• Wheelbase: 252mm (M-size wheelbase)
• Adjustable Gear Ratio: Yes
• Bearings: Plastic bushing
• Body Material: Polycarbonate
• Body Stickers: Included
• Chassis Material: FRP Fiberglass Reinforced Plastic
• Chassis Type: CC-02
• Construction Type: Assembly Kit
• Differential Type: Gear
• Drive Type: 4WD
• Motor: 540-brushed type
• Shock Damper: CVA Oil Filled
• Suspension: 4-link
• Terrain Use: Multi-Purpose

Include:

• Tamiya 1/10 CC-02 Toyota Land Cruiser 40 4WD EP Car Kit w/ Motor (1 set)

Required:

• 2-channel radio & Receiver
• Steering servo
• ESC
• 7.2-7.4volt battery pack Compatible charger
• Tamiya PS paint
• Tools
